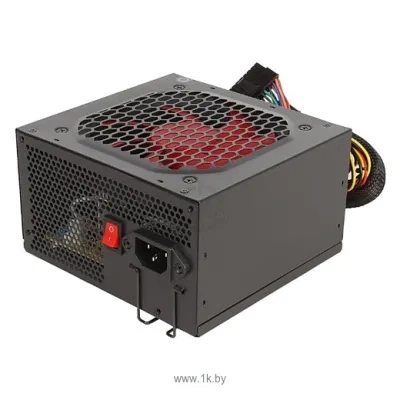

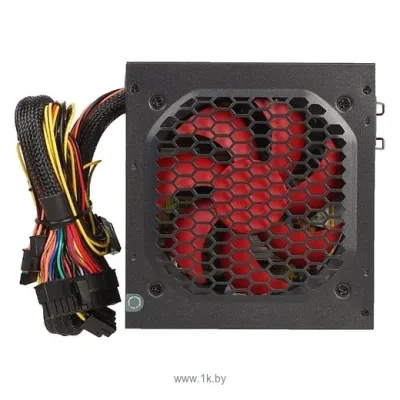

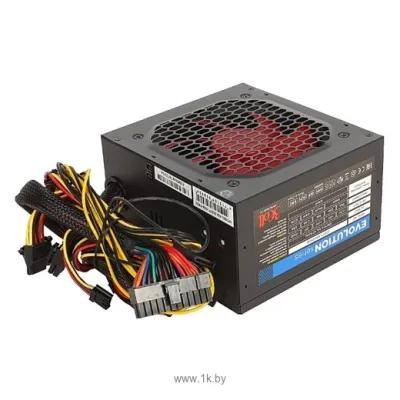

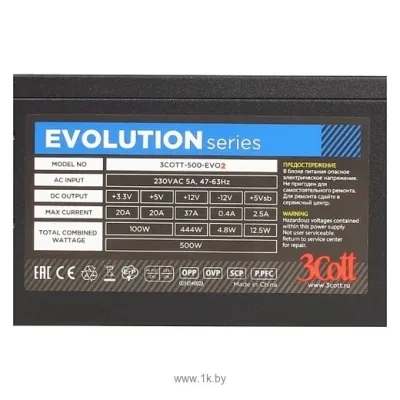

3Cott 500-EVO2 500W
500 W, 24+4 pin, Active PFCs, ATX12V: 2.3, cooling system: 1 fan (120mm)
500 W, 24+4 pin, Active PFCs, ATX12V: 2.3, cooling system: 1 fan (120mm)
General Characteristics |
|
Form-factor |
ATX |
Powers |
500 W |
Cooling System |
1 fan |
Fan diameter |
120 mm |
PFC |
Actively |
Version ATX12V |
2.3 |
EPS12V Support |
|
Current on line +12V |
37 A |
Appointment |
Standardised |
Number of individual lines +12V |
1 |
Combined load at +12V |
444 W |
Power cable length 12V |
0.45 m |
Power cabling length |
0.45 m |
connectors |
|
Unplugged cables |
|
Type of connector for motherboard |
24+4 pin |
Number of connectors 4 + 4 pin CPU |
1 |
Number of connectors 8-pin CPU |
1 |
Number of connectors 6+2-pin PCI-E |
1 |
Number of connectors 8-pin PCI-E |
1 |
Number of connectors 4-pin IDE |
3 |
Number of connectors 15-pin SATA |
4 |
Number of connectors 4-pin Floppy |
1 |
Input voltage |
|
Minimums |
230 W |
Maximal |
230 W |
Supplementary Information |
|
Fan backlighting |
|
Dimensions |
|
Width |
150 mm |
Heights |
85 mm |
Depth |
140 mm |
Weight (disambiguation) |
1.5 kg |
