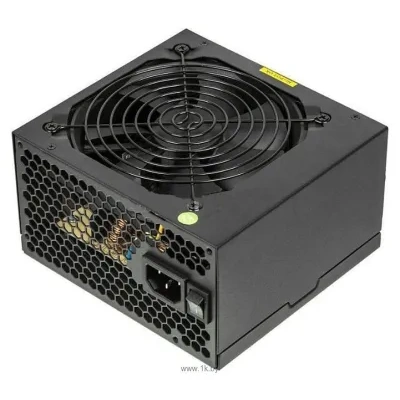

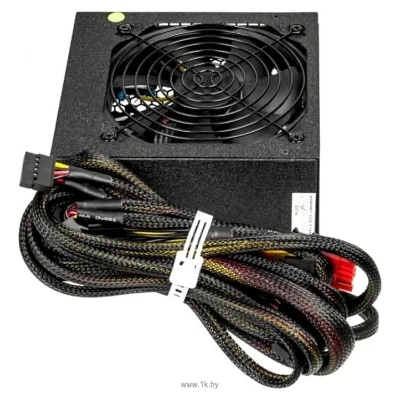

ACCORD ACC-600W-80BR
600 W, 24+4 pin, Active PFCs, ATX12V: 2.31, cooling system: 1 fan (120mm)
600 W, 24+4 pin, Active PFCs, ATX12V: 2.31, cooling system: 1 fan (120mm)
General Characteristics |
|
Form-factor |
ATX |
Powers |
600 W |
Cooling System |
1 fan |
Fan diameter |
120 mm |
PFC |
Actively |
Version ATX12V |
2.31 |
EPS12V Support |
|
Certificate 80 PLUS |
Bronze |
Standard of efficacy |
80 PLUS Bronze |
Current on line +12V |
46 A |
Appointment |
Standardised |
Number of individual lines +12V |
1 |
Combined load at +12V |
552 W |
KPA |
82 % |
connectors |
|
Unplugged cables |
|
Type of connector for motherboard |
24+4 pin |
Number of connectors 4-pin CPU |
1 |
Number of connectors 4 + 4 pin CPU |
1 |
Number of connectors 8-pin CPU |
1 |
Number of connectors 6-pin PCI-E |
1 |
Number of connectors 6+2-pin PCI-E |
2 |
Number of connectors 8-pin PCI-E |
2 |
Number of connectors 4-pin IDE |
2 |
Number of connectors 15-pin SATA |
6 |
Number of connectors 4-pin Floppy |
1 |
Number of connectors 4-pin Molex |
2 |
Input voltage |
|
Maximal |
220 W |
Supplementary Information |
|
Fan backlighting |
|
Lighting of the hull |
|
Dimensions |
|
Width |
150 mm |
Heights |
86 mm |
Depth |
140 mm |
