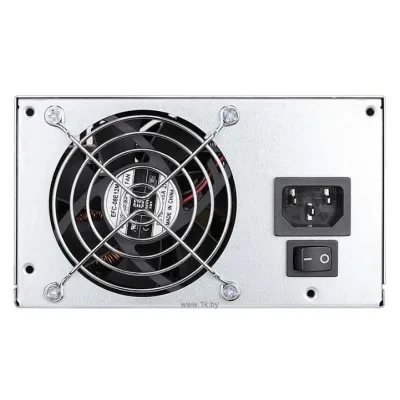

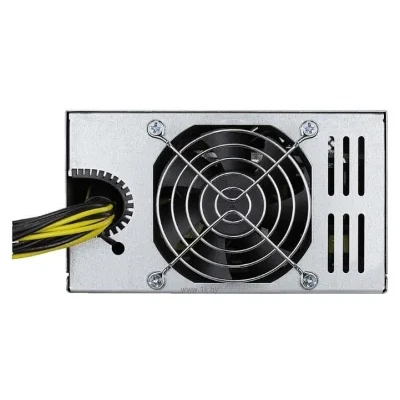

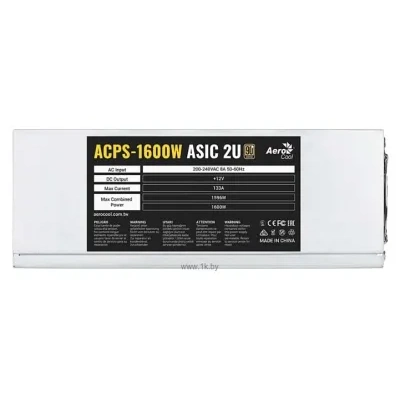

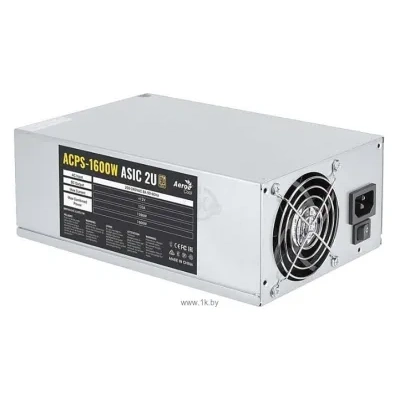

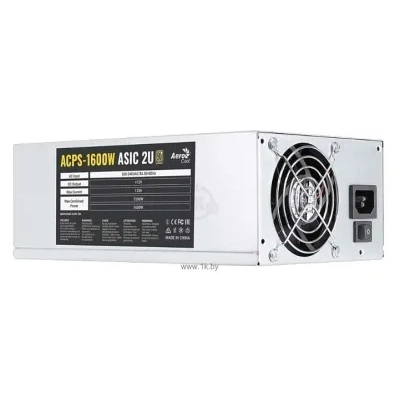

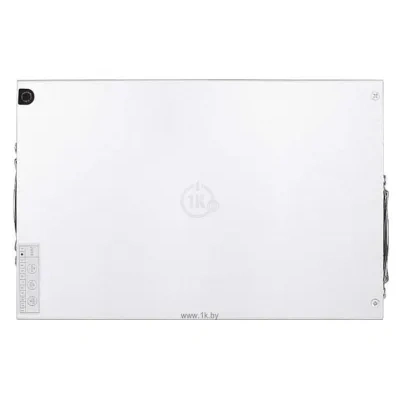

AeroCool ACPS-1600W ASIC 2U 1600W
1600 W, 24+4 pin, ATX12V: 2.4, cooling system: 2 fans (80mm)
1600 W, 24+4 pin, ATX12V: 2.4, cooling system: 2 fans (80mm)
General Characteristics |
|
Form-factor |
ATX |
Powers |
1,600 W |
Cooling System |
2 Fans |
Fan diameter |
80 mm |
Diameter of second ventilator |
80 mm |
Version ATX12V |
2.4 |
EPS12V Support |
|
Current on line +12V |
133 A |
Appointment |
for mining |
Number of individual lines +12V |
1 |
Combined load at +12V |
1 596 W |
KPA |
90 % |
Power cable length 12V |
0.45 m |
Power cabling length |
0.45 m |
connectors |
|
Unplugged cables |
|
Type of connector for motherboard |
24+4 pin |
Number of connectors 4-pin CPU |
1 |
Number of connectors 4 + 4 pin CPU |
1 |
Number of connectors 8-pin CPU |
1 |
Number of connectors 6-pin PCI-E |
10 |
Number of connectors 6+2-pin PCI-E |
7 |
Number of connectors 8-pin PCI-E |
7 |
Number of connectors 4-pin IDE |
5 |
Number of connectors 15-pin SATA |
3 |
Number of connectors 4-pin Floppy |
1 |
Input voltage |
|
Minimums |
200 W |
Maximal |
240 W |
Supplementary Information |
|
Fan backlighting |
|
Dimensions |
|
Width |
150 mm |
Heights |
86 mm |
Depth |
230 mm |
