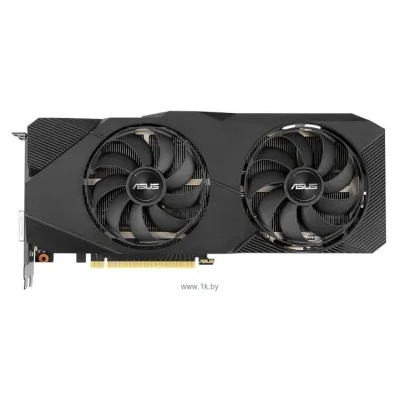

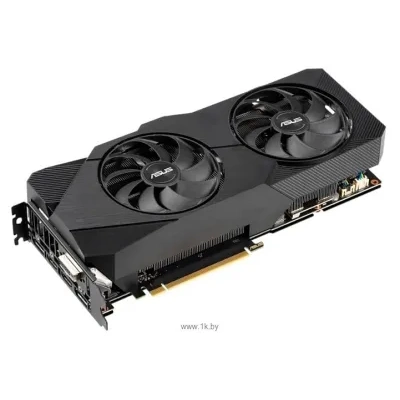

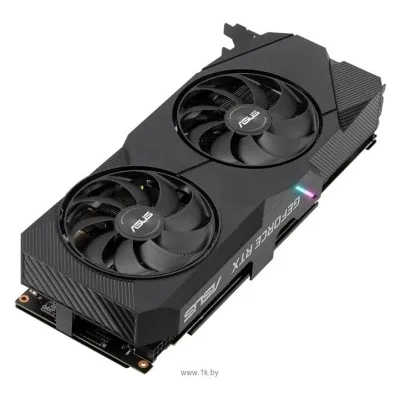

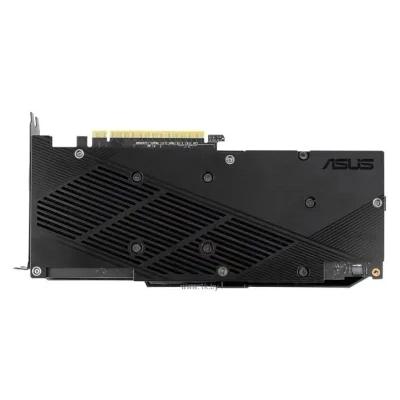

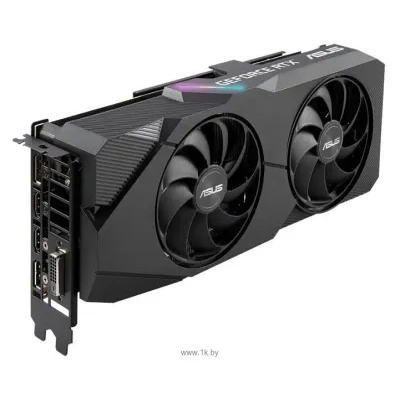

ASUS DUAL GeForce RTX 2060 SUPER EVO V2 Advanced
PCI-E 16x (3.0), processor: NVIDIA GeForce RTX 2060 SUPER (1470 MHz), Memory: GDDR6, 8192 MB, 14000 MHz, 256 bits, HDMI, displayPort, directX 12
PCI-E 16x (3.0), processor: NVIDIA GeForce RTX 2060 SUPER (1470 MHz), Memory: GDDR6, 8192 MB, 14000 MHz, 256 bits, HDMI, displayPort, directX 12
General Characteristics |
|
Connection Types |
PCI-E 16x |
Technical Specifications |
|
Types of Memories |
GDDR6 |
Memory capacitance |
8 192 MB |
Memory Frequency |
14,000 MHz |
Exchange tyre with memory |
256 bits |
SLI/CrossFire |
|
Crossfire X |
|
3-Way SLI |
|
Quad SLI |
|
NVLink |
|
TurboCache/HyperMemory |
|
CUDA Supports |
|
Supports AMD APP (ATI Stream) |
|
Mathematical block |
|
Number of Universal Processors |
2 176 |
Number of Texture Units |
136 |
Number of partitioning blocks |
64 |
DirectX Version |
12 |
OpenGL Versions |
4.6 |
CUDA Versions |
7.5 |
OpenCL Version |
1.2 |
Vulkan |
|
Number of RT Cores |
34 |
Number of tensor nuclei |
272 |
Interfaces |
|
VGA output |
|
Video output is componentized |
|
HDMI output |
|
Number of HDMI outputs |
2 |
Mini HDMI output |
|
Micro HDMI output |
|
Type HDMI |
2.0b |
DisplayPort output |
|
Number of DisplayPort outputs |
1 |
Mini DisplayPort output |
|
DisplayPort Versions |
1.4 |
USB Type-C |
|
HDCP |
|
VIVO |
|
VESA Stereo (mini-DIN) |
|
TV-out |
|
Number of DVI outputs |
1 |
Number of outputs DVI-D |
1 |
Supplementary Information |
|
Need for supplemental nutrition |
|
Supplemental power supply socket |
8 pin |
Recommended powering of the power supply unit |
550 W |
Width |
242 mm |
Heights |
132 mm |
Thickness |
53 mm |
