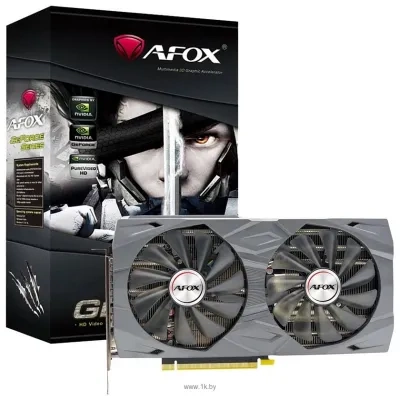

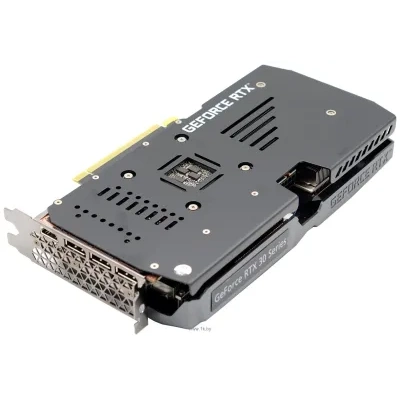

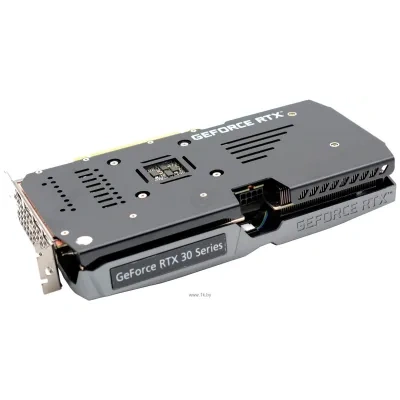

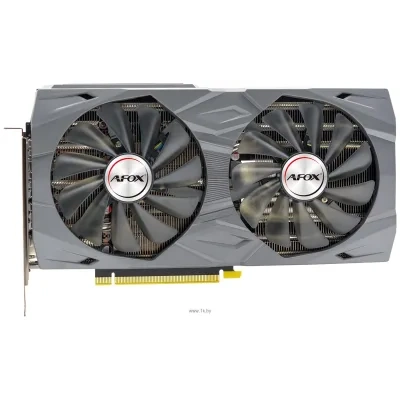

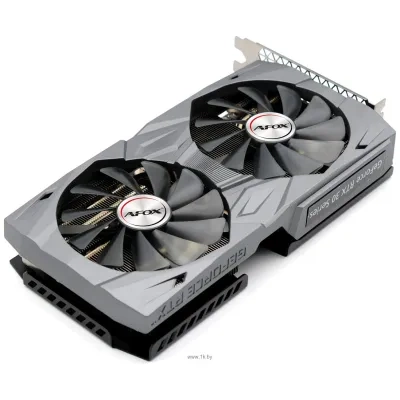

AFOX GeForce RTX 3060 12GB (AF3060-12GD6H2)
PCI-E 16x (4.0), processor: NVIDIA GeForce RTX 3060 (1320 MHz), Memory: GDDR6, 12288 MB, 15000 MHz, 192 bits, HDMI, displayPort, directX 12 Ultimate
PCI-E 16x (4.0), processor: NVIDIA GeForce RTX 3060 (1320 MHz), Memory: GDDR6, 12288 MB, 15000 MHz, 192 bits, HDMI, displayPort, directX 12 Ultimate
General Characteristics |
|
Type of video card |
Gameplay |
Connection Types |
PCI-E 16x |
Manufacturer's code |
AF3060-12GD6H2 |
Technical Specifications |
|
Types of Memories |
GDDR6 |
Memory capacitance |
12 288 Mb |
Memory Frequency |
15,000 MHz |
Exchange tyre with memory |
192 bits |
SLI/CrossFire |
|
Crossfire X |
|
3-Way SLI |
|
Quad SLI |
|
NVLink |
|
CUDA Supports |
|
Ray tracing |
|
Mathematical block |
|
Number of Universal Processors |
3 584 |
Shader version |
6.4 |
Number of Texture Units |
112 |
Number of partitioning blocks |
48 |
DirectX Version |
12 Ultimate |
Number of RT Cores |
28 |
Number of tensor nuclei |
112 |

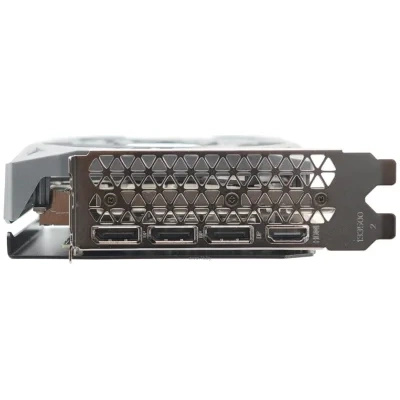

Interfaces |
|
VGA output |
|
Video output is componentized |
|
HDMI output |
|
Number of HDMI outputs |
1 |
Mini HDMI output |
|
Micro HDMI output |
|
Type HDMI |
2.1 |
DisplayPort output |
|
Number of DisplayPort outputs |
3 |
Mini DisplayPort output |
|
DisplayPort Versions |
1.4a |
USB Type-C |
|
Supplementary Information |
|
Need for supplemental nutrition |
|
Supplemental power supply socket |
8 pin |
Recommended powering of the power supply unit |
550 W |
