ASRock Intel Arc A770 Phantom Gaming D 8GB OC (A770 PGD 8GO)
PCI-E 16x (4.0), processor: Intel Arc A770 (2100 MHz), Memory: GDDR6, 8192 MB, 16000 MHz, 256 bits, HDMI, displayPort, directX 12 Ultimate
PCI-E 16x (4.0), processor: Intel Arc A770 (2100 MHz), Memory: GDDR6, 8192 MB, 16000 MHz, 256 bits, HDMI, displayPort, directX 12 Ultimate
General Characteristics |
|
Type of video card |
Gameplay |
Connection Types |
PCI-E 16x |
Manufacturer's code |
A770 PGD 8GO |
Technical Specifications |
|
Types of Memories |
GDDR6 |
Memory capacitance |
8 192 MB |
Memory Frequency |
16,000 MHz |
Exchange tyre with memory |
256 bits |
NVLink |
|
Ray tracing |
|
Mathematical block |
|
Number of Universal Processors |
3 584 |
DirectX Version |
12 Ultimate |
OpenGL Versions |
4.6 |

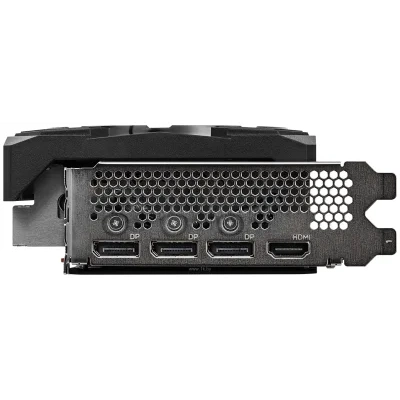

Interfaces |
|
VGA output |
|
HDMI output |
|
Number of HDMI outputs |
1 |
Mini HDMI output |
|
Micro HDMI output |
|
Type HDMI |
2.1 |
DisplayPort output |
|
Number of DisplayPort outputs |
3 |
Mini DisplayPort output |
|
DisplayPort Versions |
2.0 |
USB Type-C |
|
Supplementary Information |
|
Need for supplemental nutrition |
|
Supplemental power supply socket |
8 pin + 8 pin |
Recommended powering of the power supply unit |
700 W |
Width |
305 mm |
Heights |
131 mm |
Thickness |
56 mm |
