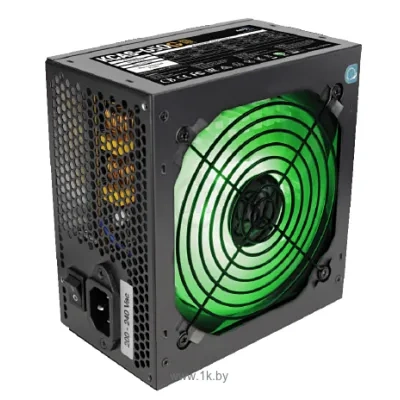

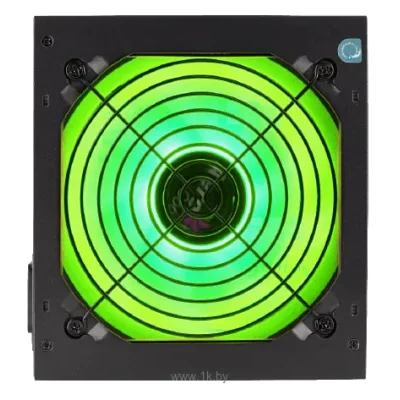

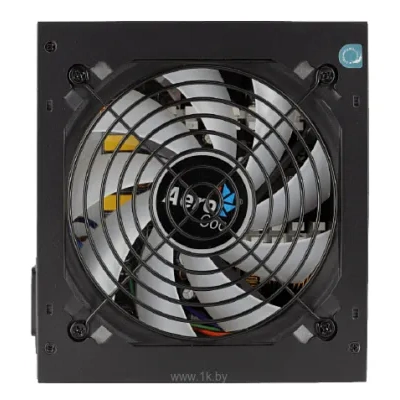

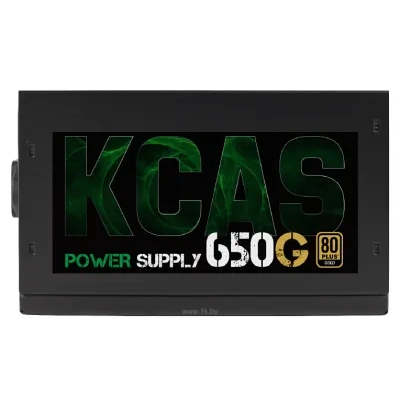

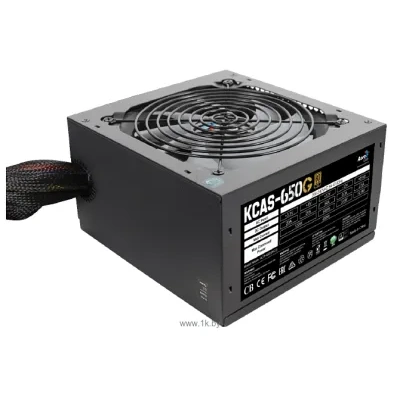

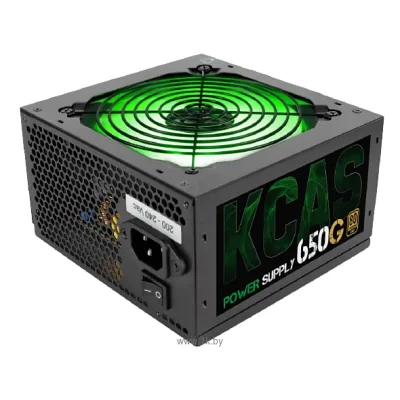

AeroCool KCAS-650G
650 W, 20+4 pin, ATX12V: 2.4, cooling system: 1 fan (120mm), backlight color: RGB
650 W, 20+4 pin, ATX12V: 2.4, cooling system: 1 fan (120mm), backlight color: RGB
General Characteristics |
|
Form-factor |
ATX |
Powers |
650 W |
Cooling System |
1 fan |
Fan diameter |
120 mm |
Version ATX12V |
2.4 |
EPS12V Support |
|
Certificate 80 PLUS |
gold |

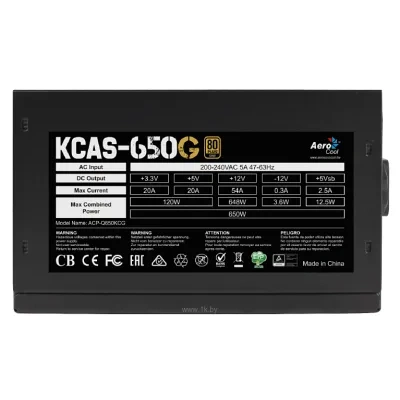

Current on line +12V |
54 A |
Number of individual lines +12V |
1 |
Combined load at +12V |
648 W |
KPA |
90 % |
connectors |
|
Unplugged cables |
|
Type of connector for motherboard |
20+4 pin |
Number of connectors 4-pin CPU |
1 |
Number of connectors 4 + 4 pin CPU |
1 |
Number of connectors 8-pin CPU |
1 |
Number of connectors 6-pin PCI-E |
1 |
Number of connectors 6+2-pin PCI-E |
2 |
Number of connectors 8-pin PCI-E |
2 |
Number of connectors 4-pin IDE |
4 |
Number of connectors 15-pin SATA |
7 |
Number of connectors 4-pin Floppy |
1 |

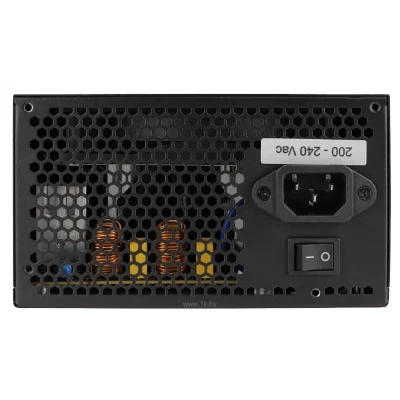

Input voltage |
|
Minimums |
200 W |
Maximal |
240 W |
Supplementary Information |
|
Fan backlighting |
|
Colors of the power supply unit |
black |
