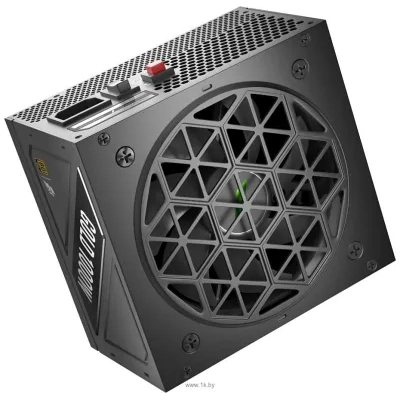

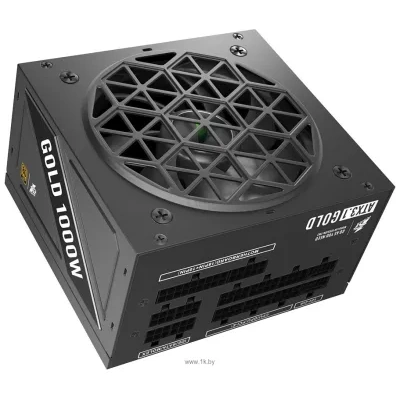

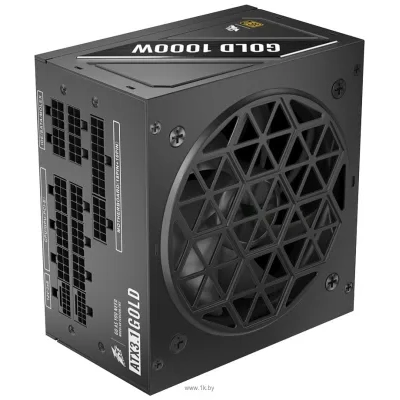

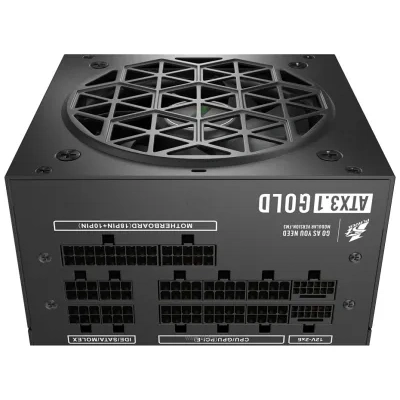

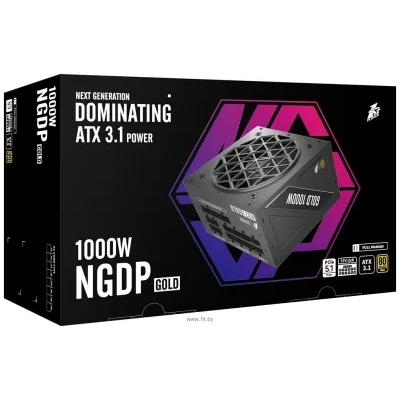

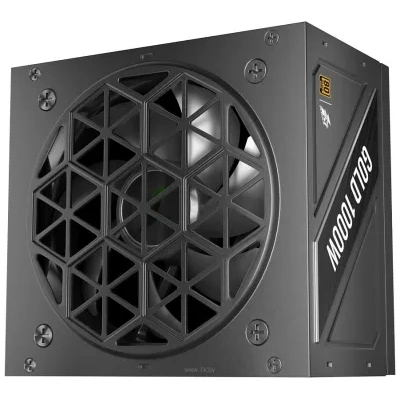

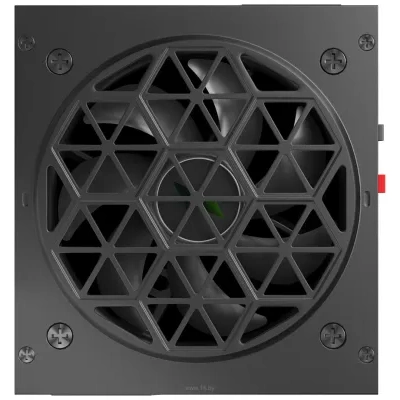

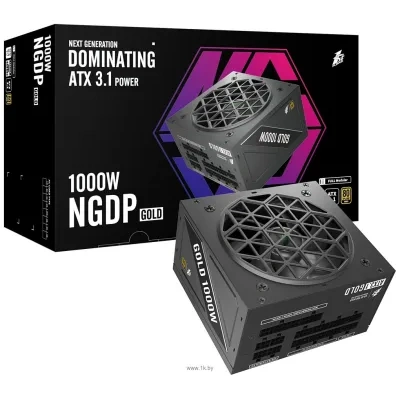

1stPlayer NGDP Gold 1000W HA-1000BA4
1000 W, 24+4 pin, Active PFCs, ATX12V: 3.0, cooling system: 1 fan (120mm), Unplugged cables
1000 W, 24+4 pin, Active PFCs, ATX12V: 3.0, cooling system: 1 fan (120mm), Unplugged cables
General Characteristics |
|
Form-factor |
ATX |
Powers |
1000 W |
Cooling System |
1 fan |
Fan diameter |
120 mm |
Type of fan bearing |
hydrodynamic |
PFC |
Actively |
Version ATX12V |
3.0 |
EPS12V Support |
|
Certificate 80 PLUS |
gold |
Current on line +12V |
83 A |
Appointment |
gamer |
Number of individual lines +12V |
1 |
Combined load at +12V |
996 W |
KPA |
90.8 % |
Power cable length 12V |
0.61 m |
connectors |
|
Unplugged cables |
|
Type of connector for motherboard |
24+4 pin |
Number of connectors 4 + 4 pin CPU |
2 |
Number of connectors 6+2-pin PCI-E |
3 |
Number of connectors 4-pin IDE |
4 |
Number of connectors 15-pin SATA |
8 |
Number of Gen5 16-pin PCI-E connectors |
1 |
Input voltage |
|
Minimums |
100 W |
Maximal |
240 W |
Supplementary Information |
|
Fan backlighting |
|
Lighting of the hull |
|
Colors of the power supply unit |
black |
Year of market entry |
2023 |
Dimensions |
|
Width |
150 mm |
Heights |
86 mm |
Depth |
140 mm |
