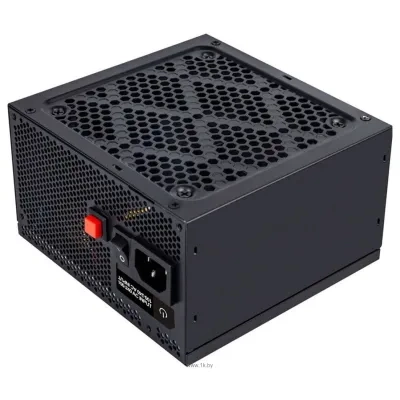

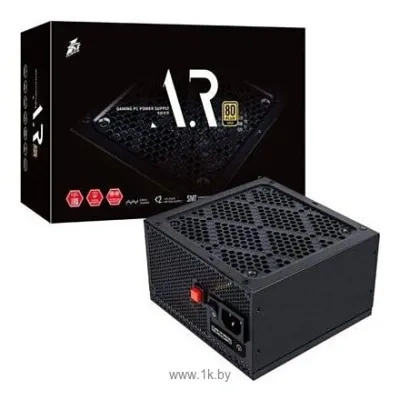

1stPlayer PS-550AR 550W
550 W, 24+4 pin, Active PFCs, cooling system: 4 fans (120mm)
550 W, 24+4 pin, Active PFCs, cooling system: 4 fans (120mm)
General Characteristics |
|
Form-factor |
ATX |
Powers |
550 W |
Cooling System |
4 Fans |
Fan diameter |
120 mm |
Type of fan bearing |
hydrodynamic |
PFC |
Actively |
Certificate 80 PLUS |
gold |
Standard of efficacy |
80 PLUS Gold |
Current on line +12V |
45 A |
Appointment |
gamer |
Number of individual lines +12V |
1 |
Combined load at +12V |
540 W |
KPA |
92.4 % |
Power cable length 12V |
0.55 m |
Power cabling length |
0.55 m |
connectors |
|
Unplugged cables |
|
Type of connector for motherboard |
24+4 pin |
Number of connectors 4-pin CPU |
1 |
Number of connectors 4 + 4 pin CPU |
2 |
Number of connectors 8-pin CPU |
2 |
Number of connectors 6-pin PCI-E |
1 |
Number of connectors 6+2-pin PCI-E |
2 |
Number of connectors 8-pin PCI-E |
2 |
Number of connectors 4-pin IDE |
3 |
Number of connectors 15-pin SATA |
6 |
Input voltage |
|
Minimums |
100 W |
Maximal |
240 W |
Supplementary Information |
|
Fan backlighting |
|
Lighting of the hull |
|
Dimensions |
|
Width |
150 mm |
Heights |
86 mm |
Depth |
140 mm |
Weight (disambiguation) |
2 kilos |
