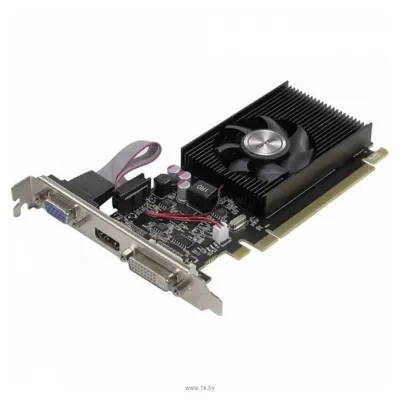

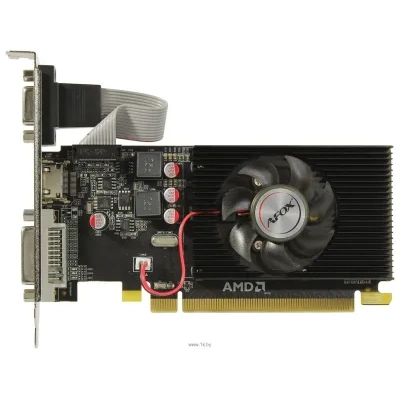

AFOX Radeon R5 220 1GB (AFR5220-1024D3L4)
PCI-E 16x (2.0), processor: AMD Radeon R5 220 (650 MHz), Memory: GDDR3, 1024 Mb, 1066 MHz, 64 bits, low Profile, VGA, HDMI, directX 11.2
PCI-E 16x (2.0), processor: AMD Radeon R5 220 (650 MHz), Memory: GDDR3, 1024 Mb, 1066 MHz, 64 bits, low Profile, VGA, HDMI, directX 11.2
General Characteristics |
|
Type of video card |
Offices |
Connection Types |
PCI-E 16x |
Technical Specifications |
|
Types of Memories |
GDDR3 |
Memory capacitance |
1 024 Mb |
Memory Frequency |
1 066 MHz |
Exchange tyre with memory |
64 bits |
SLI/CrossFire |
|
Crossfire X |
|
3-Way SLI |
|
Quad SLI |
|
NVLink |
|
CUDA Supports |
|
Ray tracing |
|
Mathematical block |
|
Number of Universal Processors |
80 |
Shader version |
5.0 |
Number of Texture Units |
8 |
Number of partitioning blocks |
4 |
Max. degree of anisotropic filtration |
16x |
Max. degree of FSAA |
24x |
DirectX Version |
11.2 |
OpenGL Versions |
4.4 |
OpenCL Version |
1.2 |
Vulkan |
|
Interfaces |
|
VGA output |
|
HDMI output |
|
Number of HDMI outputs |
1 |
Mini HDMI output |
|
Micro HDMI output |
|
DisplayPort output |
|
Mini DisplayPort output |
|
USB Type-C |
|
HDCP |
|
Number of DVI outputs |
1 |
Number of outputs DVI-D |
1 |
Supplementary Information |
|
Need for supplemental nutrition |
|
Recommended powering of the power supply unit |
350 W |
Width |
168 mm |
