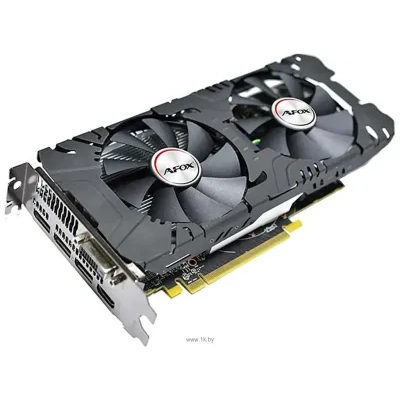

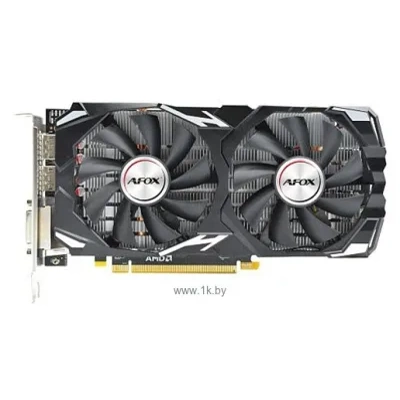

AFOX Radeon RX 580 8GB (AFRX580-8192D5H3-V2)
PCI-E 16x (3.0), processor: AMD Radeon RX 580 (1284 MHz), Memory: GDDR5, 8192 MB, 8000 MHz, 256 bits, HDMI, displayPort, directX 12
PCI-E 16x (3.0), processor: AMD Radeon RX 580 (1284 MHz), Memory: GDDR5, 8192 MB, 8000 MHz, 256 bits, HDMI, displayPort, directX 12
General Characteristics |
|
Type of video card |
Offices |
Connection Types |
PCI-E 16x |
Technical Specifications |
|
Types of Memories |
GDDR5 |
Memory capacitance |
8 192 MB |
Memory Frequency |
8,000 MHz |
Exchange tyre with memory |
256 bits |
Crossfire X |
|
3-Way SLI |
|
Quad SLI |
|
NVLink |
|
CUDA Supports |
|
Ray tracing |
|
Mathematical block |
|
Number of Universal Processors |
2 304 |
Shader version |
5.0 |
Number of Texture Units |
144 |
Number of partitioning blocks |
32 |
DirectX Version |
12 |
OpenGL Versions |
4.5 |
OpenCL Version |
2.0 |

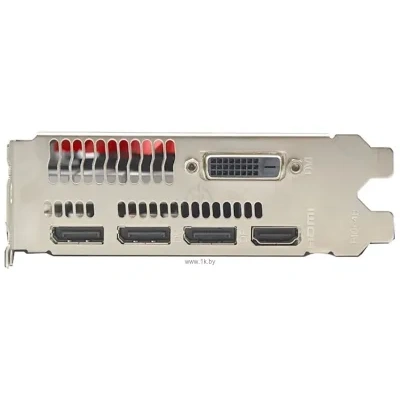

Interfaces |
|
VGA output |
|
HDMI output |
|
Number of HDMI outputs |
1 |
Mini HDMI output |
|
Micro HDMI output |
|
Type HDMI |
2.0b |
DisplayPort output |
|
Number of DisplayPort outputs |
3 |
Mini DisplayPort output |
|
DisplayPort Versions |
1.4 |
USB Type-C |
|
Number of DVI outputs |
1 |
Supplementary Information |
|
Need for supplemental nutrition |
|
Supplemental power supply socket |
8 pin + 6 pin |
Recommended powering of the power supply unit |
500 W |
Width |
232 mm |
Heights |
111 mm |
Thickness |
53 mm |
