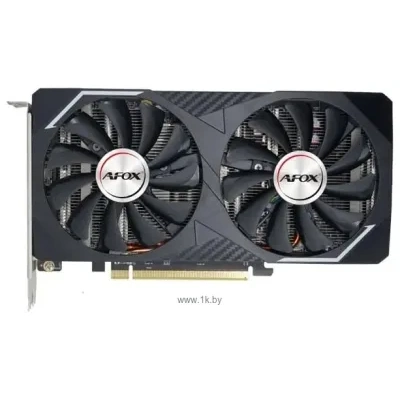

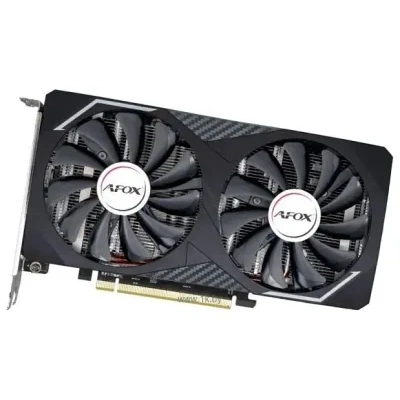

AFOX Radeon RX 6600 XT (AFRX6600XT-8GD6H4)
PCI-E 8x (4.0), processor: AMD Radeon RX 6600 XT (2359 MHz), Memory: GDDR6, 8192 MB, 16000 MHz, 128 bits, HDMI, displayPort, directX 12 Ultimate
PCI-E 8x (4.0), processor: AMD Radeon RX 6600 XT (2359 MHz), Memory: GDDR6, 8192 MB, 16000 MHz, 128 bits, HDMI, displayPort, directX 12 Ultimate
General Characteristics |
|
Type of video card |
Gameplay |
Connection Types |
PCI-E 8x |
Manufacturer's code |
AFRX6600XT-8GD6H4 |
Technical Specifications |
|
Types of Memories |
GDDR6 |
Memory capacitance |
8 192 MB |
Memory Frequency |
16,000 MHz |
Exchange tyre with memory |
128 bits |
SLI/CrossFire |
|
Crossfire X |
|
3-Way SLI |
|
Quad SLI |
|
NVLink |
|
CUDA Supports |
|
Ray tracing |
|
Mathematical block |
|
Number of Universal Processors |
2 048 |
Shader version |
5.0 |
Number of partitioning blocks |
32 |
Max. degree of anisotropic filtration |
16x |
Max. degree of FSAA |
24x |
DirectX Version |
12 Ultimate |
OpenGL Versions |
4.6 |
OpenCL Version |
1.2 |
Vulkan |
|
Number of RT Cores |
32 |

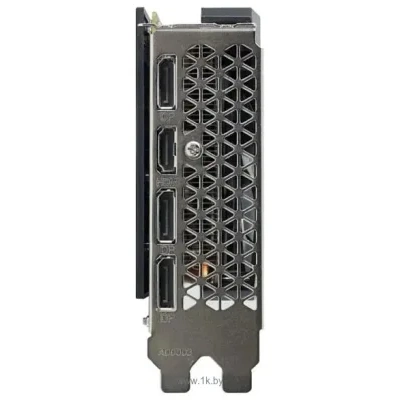

Interfaces |
|
VGA output |
|
Video output is componentized |
|
HDMI output |
|
Number of HDMI outputs |
1 |
Mini HDMI output |
|
Micro HDMI output |
|
Type HDMI |
2.1 |
DisplayPort output |
|
Number of DisplayPort outputs |
1 |
Mini DisplayPort output |
|
DisplayPort Versions |
1.4a |
USB Type-C |
|
HDCP |
|
Supplementary Information |
|
Need for supplemental nutrition |
|

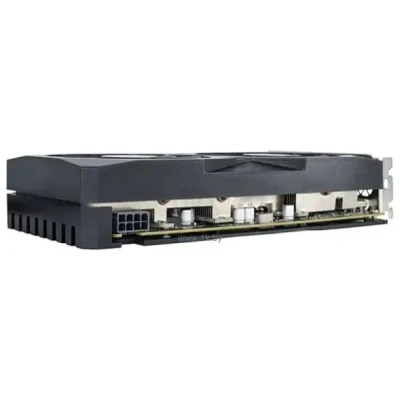

Supplemental power supply socket |
8 pin |
Recommended powering of the power supply unit |
500 W |
Width |
200 mm |
