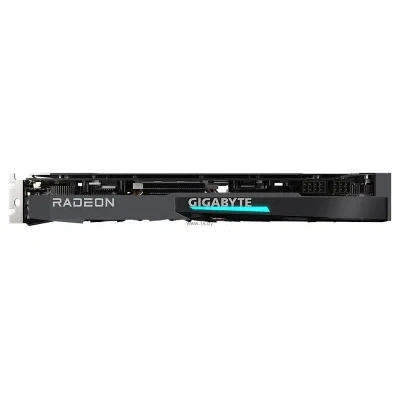

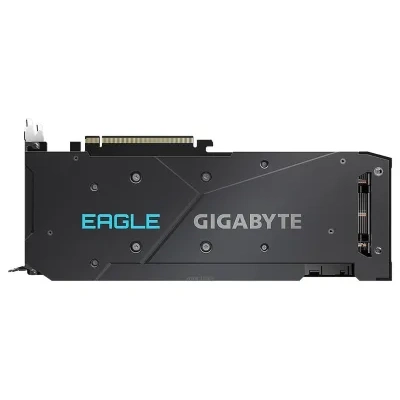

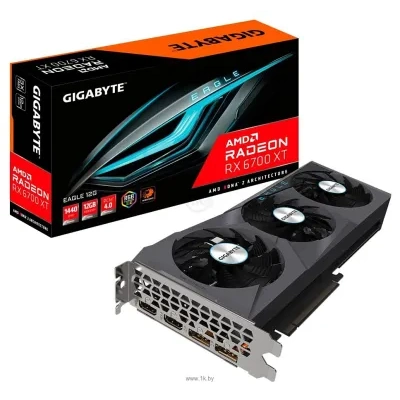

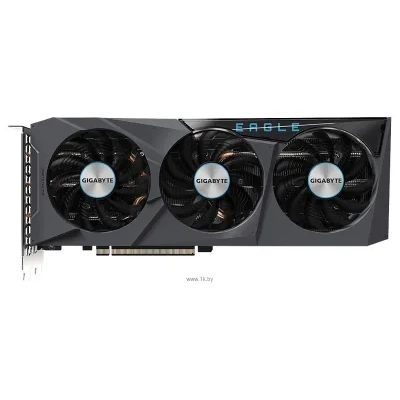

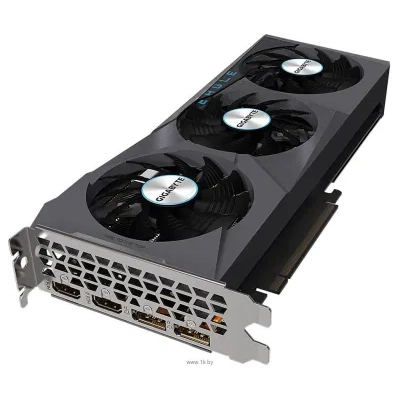

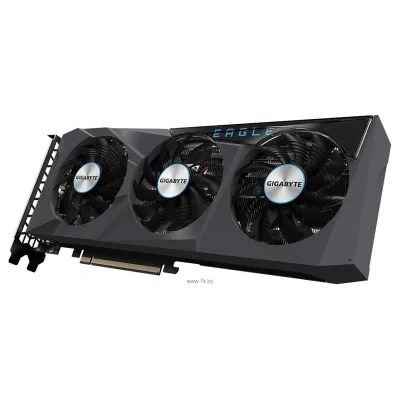

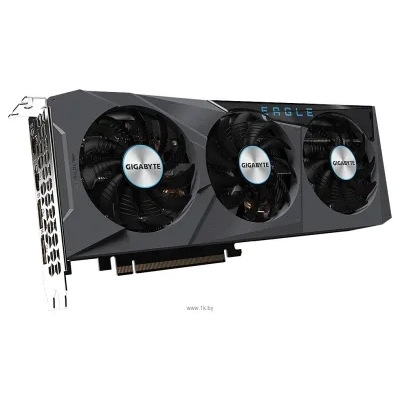

AMD Radeon RX 6700 XT EAGLE 12G (GV-R67XTEAGLE-12GD)
PCI-E 16x (4.0), processor: AMD Radeon RX 6700 XT, Memory: GDDR6, 12288 MB, 16000 MHz, 192 bits, HDMI, displayPort, directX 12 Ultimate
PCI-E 16x (4.0), processor: AMD Radeon RX 6700 XT, Memory: GDDR6, 12288 MB, 16000 MHz, 192 bits, HDMI, displayPort, directX 12 Ultimate
General Characteristics |
|
Type of video card |
Gameplay |
Connection Types |
PCI-E 16x |
Technical Specifications |
|
Types of Memories |
GDDR6 |
Memory capacitance |
12 288 Mb |
Memory Frequency |
16,000 MHz |
Exchange tyre with memory |
192 bits |
3-Way SLI |
|
Quad SLI |
|
Ray tracing |
|
Mathematical block |
|
Number of Universal Processors |
2 560 |
Shader version |
6.5 |
Number of Texture Units |
160 |
Number of partitioning blocks |
64 |
DirectX Version |
12 Ultimate |
OpenGL Versions |
4.6 |
Vulkan |
|
Number of RT Cores |
40 |

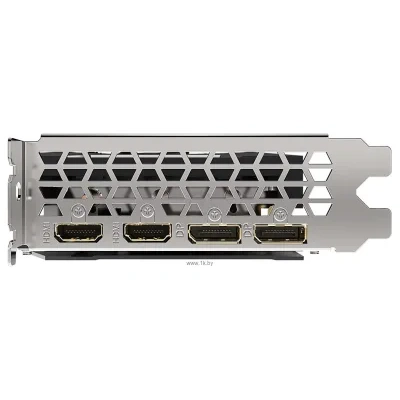

Interfaces |
|
VGA output |
|
HDMI output |
|
Number of HDMI outputs |
2 |
Mini HDMI output |
|
Micro HDMI output |
|
Type HDMI |
2.1 |
DisplayPort output |
|
Number of DisplayPort outputs |
2 |
Mini DisplayPort output |
|
DisplayPort Versions |
1.4 |
USB Type-C |
|
HDCP |
|
Supplementary Information |
|
Need for supplemental nutrition |
|
Supplemental power supply socket |
8 pin + 6 pin |
Recommended powering of the power supply unit |
650 W |
Width |
282 mm |
Heights |
113 mm |
Thickness |
40 mm |
