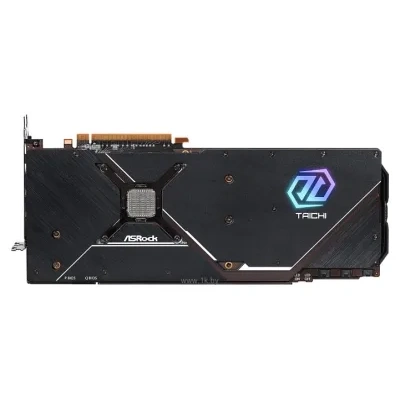

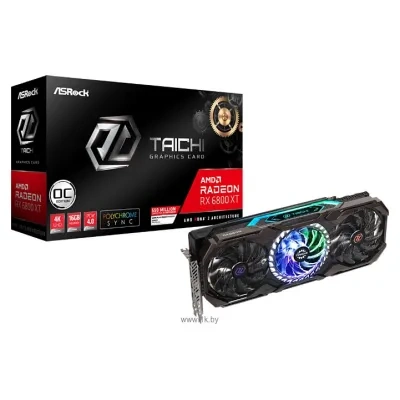

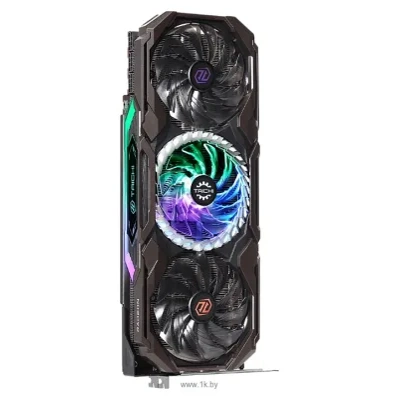

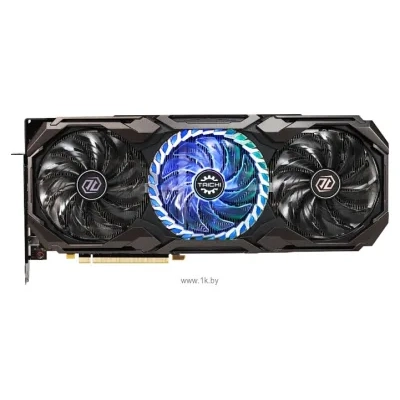

ASRock Radeon RX 6800 XT Taichi X OC 16GB
PCI-E 16x (4.0), processor: AMD Radeon RX 6800 XT (2110 MHz), Memory: GDDR6, 16384 Mb, 256 bits, HDMI, displayPort, directX 12 Ultimate
PCI-E 16x (4.0), processor: AMD Radeon RX 6800 XT (2110 MHz), Memory: GDDR6, 16384 Mb, 256 bits, HDMI, displayPort, directX 12 Ultimate
General Characteristics |
|
Type of video card |
Gameplay |
Connection Types |
PCI-E 16x |
Technical Specifications |
|
Types of Memories |
GDDR6 |
Memory capacitance |
16 384 Mb |
Exchange tyre with memory |
256 bits |
SLI/CrossFire |
|
Crossfire X |
|
3-Way SLI |
|
Quad SLI |
|
NVLink |
|
CUDA Supports |
|
Ray tracing |
|
Mathematical block |
|
Number of Universal Processors |
4 608 |
Shader version |
6.5 |
Number of Texture Units |
288 |
Number of partitioning blocks |
128 |
DirectX Version |
12 Ultimate |
OpenGL Versions |
4.6 |
OpenCL Version |
2.0 |
Vulkan |
|
Number of RT Cores |
72 |

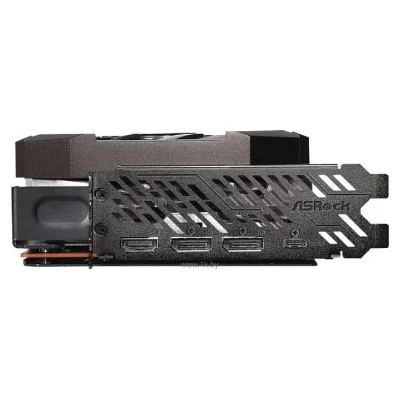

Interfaces |
|
VGA output |
|
HDMI output |
|
Number of HDMI outputs |
1 |
Mini HDMI output |
|
Micro HDMI output |
|
Type HDMI |
2.1 |
DisplayPort output |
|
Number of DisplayPort outputs |
2 |
Mini DisplayPort output |
|
DisplayPort Versions |
1.4a |
USB Type-C |
|
HDCP |
|
Supplementary Information |
|
Need for supplemental nutrition |
|
Supplemental power supply socket |
8 pin + 8 pin + 8 pin |
Recommended powering of the power supply unit |
800 W |
Width |
330 mm |
Heights |
140 mm |
Thickness |
56 mm |
