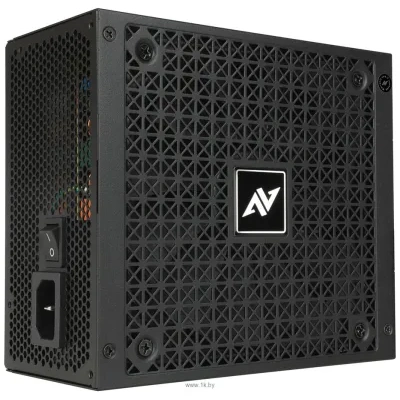

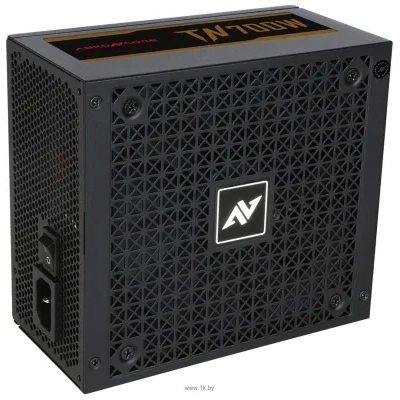

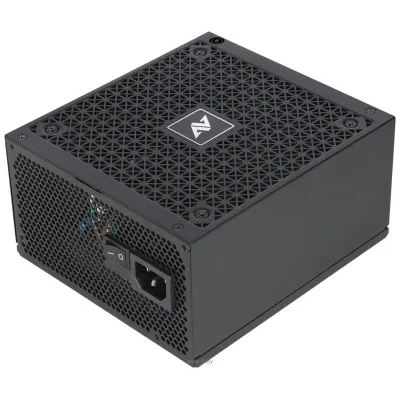

Abkoncore Tenergy TN-700 Bronze
700 W, 24+4 pin, Active PFCs, ATX12V: 2.5, cooling system: 1 fan (135mm)
700 W, 24+4 pin, Active PFCs, ATX12V: 2.5, cooling system: 1 fan (135mm)
General Characteristics |
|
Form-factor |
ATX |
Powers |
700 W |
Cooling System |
1 fan |
Fan diameter |
135 mm |
PFC |
Actively |
Version ATX12V |
2.5 |
EPS12V Support |
|
Certificate 80 PLUS |
Bronze |
Current on line +12V |
58.3 A |
Appointment |
gamer |
Number of individual lines +12V |
1 |
Combined load at +12V |
699 W |
connectors |
|
Unplugged cables |
|
Type of connector for motherboard |
24+4 pin |
Number of connectors 4-pin CPU |
1 |
Number of connectors 4 + 4 pin CPU |
1 |
Number of connectors 8-pin CPU |
1 |
Number of connectors 6-pin PCI-E |
1 |
Number of connectors 6+2-pin PCI-E |
4 |
Number of connectors 8-pin PCI-E |
4 |
Number of connectors 4-pin IDE |
3 |
Number of connectors 15-pin SATA |
6 |
Number of connectors 4-pin Floppy |
1 |
Input voltage |
|
Minimums |
100 W |
Maximal |
240 W |
Supplementary Information |
|
Fan backlighting |
|
Lighting of the hull |
|
Dimensions |
|
Weight (disambiguation) |
2.31 kg |
