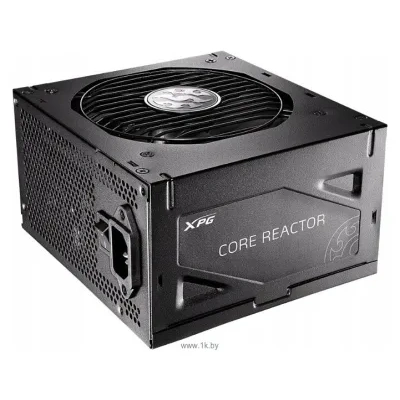

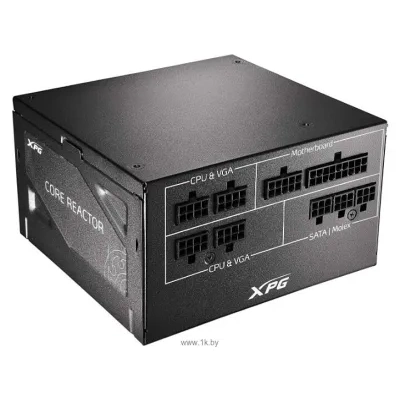

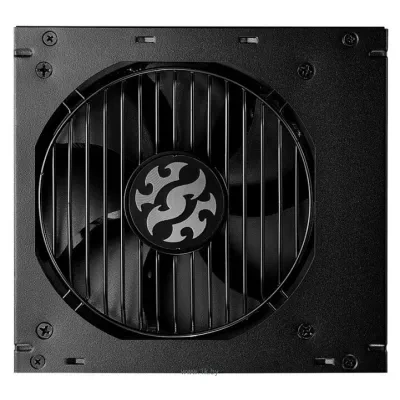

ADATA XPG Core Reactor 750W
750 W, 24+4 pin, Active PFCs, ATX12V: 2.52, cooling system: 1 fan (120mm), Unplugged cables
750 W, 24+4 pin, Active PFCs, ATX12V: 2.52, cooling system: 1 fan (120mm), Unplugged cables
General Characteristics |
|
Form-factor |
ATX |
Powers |
750 W |
Cooling System |
1 fan |
Fan diameter |
120 mm |
PFC |
Actively |
Version ATX12V |
2.52 |
EPS12V Support |
|
Certificate 80 PLUS |
gold |
Standard of efficacy |
80 PLUS Gold |
Current on line +12V |
62.5 A |
Appointment |
gamer |
Number of individual lines +12V |
1 |
Combined load at +12V |
750 W |
Power cable length 12V |
0.65 m |
connectors |
|
Unplugged cables |
|
Type of connector for motherboard |
24+4 pin |
Number of connectors 4 + 4 pin CPU |
2 |
Number of connectors 6+2-pin PCI-E |
4 |
Number of connectors 4-pin IDE |
1 |
Number of connectors 15-pin SATA |
3 |
Number of connectors 4-pin Floppy |
6 |
Number of connectors 4-pin Molex |
4 |
Input voltage |
|
Minimums |
100 W |
Maximal |
240 W |
Supplementary Information |
|
Maximum Noise Levels |
22.7 dBA |
Fan backlighting |
|
Lighting of the hull |
|
Colors of the power supply unit |
black |
Dimensions |
|
Width |
140 mm |
Heights |
86 mm |
Depth |
150 mm |
Weight (disambiguation) |
1.4 kg |
